High Density and Blade Servers
.jpg)

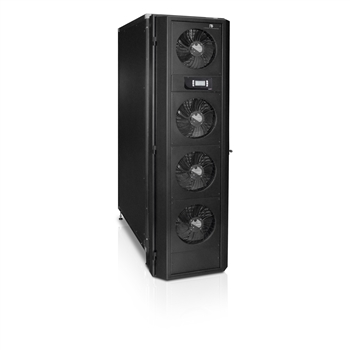

Coolside Door (CW)
This unit is the most innovative and efficient system for managing Hot spots inside data centers, in other words, HIGH DENSITY racks up to and over 40 kW/m2 per rack. The Cooling door unit is housed at the rear of the rack and is managed by a DYNAMIC system, especially designed to handle the rack exhaust air, which SELF-ADAPTS to rack requirements. MAIN CARATTERISTICS - New generationEC fans - 42U / 48U racks adapdability - Can be supplied with with rack - Dinamic control of Air stratification - Configuration R (N+1) and T - Integration into DUAL CIRCUIT, FREECOOLING + BACK UP system - Dehumidification Less Management. WORKING MODE This unit is to be considered both as a stand alone cooling unit for the exhaust air of the single rack in the small data center as a system for managing Hot spots in large data center for integration of hot and cold aisle or compartization structures. While the cooling of RACK is delegated to the perimetral conditioning units that provide cold air 18-20° C in the cold aisle, this cooling door handles rack at higher thermal load (called HOT SPOTS) generally due to the use of modern blade servers.
Coolside DX
The indoor vertical air conditioning unit RACK COOLER is an effective management system of the Hot Spots in the data center, ensuring low energy consumption and usage possibilities even under extremely high loads for HIGH DENSITY rack ´up and over 40 kW/m2 rack. The use of EC fan systems, featuring last-generation electronic-switching brushless motors, assures excellent performance and low consumption. Available as standard with the dynamic management of N +1 EC fans to optimize consumption and redundancy of the cooling system. Coupled with outdoor condensing unit air-cooled type with axial-flow fans, fitted with INVERTER-DRIVEN HERMETIC SCROLL compressor for operation on R410A refrigerant, available on versions BASIC and LT for low external temperature.
Coolside DF
The indoor vertical air conditioning units RACK COOLER is an effective management system of the Hot Spots in the data center, ensuring low energy consumption and usage possibilities even under extremely high loads for HIGH DENSITY rack ´up and over 40 kW/m2 rack. The use of EC fan systems, featuring last-generation electronic-switching brushless motors, assures excellent performance and low consumption. The Rack Cooler Dual Fluid unit provides redundancy in cooling capacity also in emergency situations: to be connected to an external chiller for primary chilled water circuit, and to condensing unit i-HCAT for the secondary or back up circuit in direct expansion type. The condensing unit air-cooled type with axial-flow fans, fitted with INVERTER-DRIVEN HERMETIC SCROLL compressor for operation on R410A refrigerant, mounted on rubber vibration dampers, complete with oil charge, supplied with oil separator to ensure correct lubrication even at minimum speed, and fitted with thermal protector; available on BASIC versions and LT for low external temperature.
Coolside FC
The indoor vertical air conditioning units RACK COOLER is an effective management system of the Hot Spots in the data center, ensuring low energy consumption and usage possibilities even under extremely high loads for HIGH DENSITY rack up and over 40 kW/m2 rack.The use of EC fan systems, featuring last-generation electronic-switching brushless motors, assures excellent performance and low consumption. The Rack Cooler, coupled with the condensig water unit, combines the direct expansion system with the use of indirect free cooling water to ensure the cooling capacity required by the server with the maximum energy savings. The works in free cooling mode when the outside temperature permits using outdoor air as a source of indirect cooling, allowing the simultaneous operation between direct expansion system and water to maximize efficiency. For an easy integration in the plant, the water condensing unit fitted with plate heat exchanger, is equipped with dry cooler axial fans, circulation pump and expansion vessel. Fitted with INVERTER-DRIVEN HERMETIC SCROLL compressor for operation on R410A refrigerant, mounted on rubber vibration dampers, complete with oil charge, supplied with oil separator to ensure correct lubrication even at minimum speed, and fitted with thermal protector.

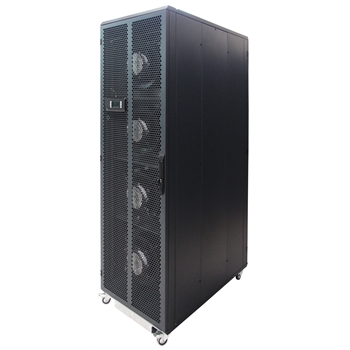

Coolside Row

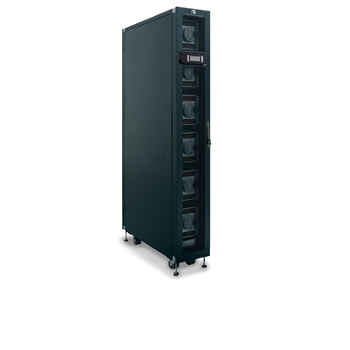

Coolside Rack Cooler (CW)
The indoor vertical air conditioning units RACK COOLER is an effective management system of the Hot Spots in the data center, ensuring low energy consumption and usage possibilities even under extremely high loads for HIGH DENSITY rack ´up and over 40 kW/m2 rack. In hydronic version where the cooling is ensured by the use of an external chiller. The use of EC fan systems, featuring last-generation electronic-switching brushless motors, assures excellent performance and low consumption. Available as standard with the dynamic management of N +1 EC fans to optimize consumption and redundancy of the cooling system. These individual units to be positioned between the racks in the row so as to act locally in order to dissipate the load of servers.
Coolside Row DX
FULL INVERTER direct expansion Air Conditioners for IT Cooling designed to be coupled with a remote condenser. The machines are made for indoor installation. The series is suitable for application in modern IT infrastructure, all characterized by high thermal loads. The range is particularly suitable for high density racks and blade server cooling in Data Center with hot spots. It is able to cope the high density of the thermal load with small footprint. The installation foresees the direct insertion within the rows of racks to cool the localized heat sources (hot spot). The unit easily adapts to the real thermal load of the server; it is an easy to install solution for modular cooling systems and rapid upgrade of the data center capacity. BLDC hermetic inverter compressor installed in the unit for optimizing the performances and increasing the overall efficiency of the system in any condition; new plug fans with EC electric motors and impeller in composite material, which guarantees a reduction of power consumption. The units is available with horizontal air flow for IN ROW cooling system application (for rows of racks). Air intake from the back side and frontal air delivery through honeycomb type grilles.
Coolside Row DF DX
DUAL FLUID FULL INVERTER direct expansion Air Conditioners for IT Cooling designed to be coupled with a remote condenser. The units provide redundancy in cooling capacity also in emergency situations; to be connected to an external chiller for primary chilled water circuit, and to a remote condenser for the secondary or back up direct expansion circuit. The machines are suitable for indoor installation in modern IT infrastructures with high density racks / blade servers and in Data Center with hot spots, dissipating an high thermal load with small footprint. The installation foresees the direct insertion within the rows of racks to cool the localized heat sources (hot spot). The unit easily adapts to the real thermal load of the server; it is an easy to install solution for modular cooling systems and fast upgrade of the data center capacity. BLDC hermetic inverter compressor installed in the unit for optimizing the performances and increasing the overall efficiency of the system in any condition; new plug fans with EC electric motors and impeller in composite material, which guarantees a reduction of power consumption. The units is available with horizontal air flow for IN ROW cooling system application. Air intake from the back side and frontal air delivery through honeycomb type grilles.
