Displacement Air Delivery (Frontal)

/

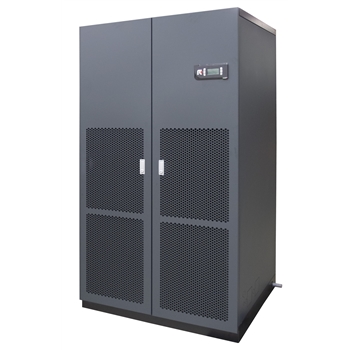

i-NEXT DL DX

Ductable close control units air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifer and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. The INVERTER compressor allows the cooling capacity modulation according to the real internal load, particularly efficient at the partial loads and optimizing the power absorbed and eliminating the stating current. Units fitted with electronic expansion valve and EC INVERTER fans with displacement air delivery.

Versions

  • -DISPLACEMENT AIR DELIVER

Features

  • Unit for indoor installation with displacement air delivery.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the compressor and all the other parts are guaranteed by partners who are world leaders in their sector.
  • Standard G4 filtering section, M5 optional, to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • NEW EC INVERTER fans in order to maximize the energy saving and reducing the noise emissions. The fan section is contained within the machine and includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external EC rotor electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • The microprocessor controls the compressor activation times with FIFO logic, thereby regulating the cooling capacity; it also controls the operating alarms with the possibility of interfacing to supervisor and remote-servicing systems.
  • Switchboard to IEC 204-1/EN60204-1
  • Refrigerant circuit consisting of electronic expansion valve that allows high performance and system efficiency thanks to a timely and accurate response to changes in temperature and pressure, sight glass, filter dryer on liquid line, pressure transducers with indication, control and protection functions on low and high refrigerant pressure, high pressure safety switch with manual reset, liquid receiver with accessories.
  • Last generation of scroll or rotary BLDC INVERTER compressor, for high efficiency.
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Interface electronic board
Data book i-NEXT DL DX
Technical Bulletin i-NEXT DL DX
/

t-NEXT DL DX

Close control air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifier and dehumidifier for precise temperature and humidity control. Particularly suitable for for precision air conditioning in servers and IT rooms and all technological applications in general. Units fitted with EC INVERTER fans and displacement air delivery. External air condenser.

Versions

  • -DISPLACEMENT AIR DELIVER

Features

  • Unit for indoor installation with displacement air delivery.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the compressor and all the other parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans in order to maximize the energy saving and reducing the noise emissions. The fan section is contained within the machine and includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external EC rotor electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard G4 filtering section, M5 optional, to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • The microprocessor controls the compressor activation times with FIFO logic, thereby regulating the cooling capacity; it also controls the operating alarms with the possibility of interfacing to supervisor and remote-servicing systems.
  • Refrigerant circuit consisting of mechanical expansion valve, sight glass, filter dryer on liquid line, pressure transducers with indication, control and protection functions on low and high refrigerant pressure, high pressure safety switch with manual reset, liquid receiver with accessories.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Interface electronic board
Data book t-NEXT DL DX
Technical Bulletin t-NEXT DL DX
/

w-NEXT DL

Ductable close control air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifier and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. Units fitted with EC INVERTER fans and displacement air delivery. These units are provided with modulating 2 way valve and servomotor. Unit has to be connected with an external chiller.

Versions

  • -DISPLACEMENT AIR DELIVER

Features

  • Unit for indoor installation with displacement air delivery.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans in order to maximize the energy saving and reducing the noise emissions. The fan section is contained within the machine and includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external EC rotor electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard G4 filtering section, M5 optional, to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Interface electronic board
Data book w-NEXT DL
Technical Bulletin w-NEXT DL
