Chilled Water: High Temperature, High Delta T

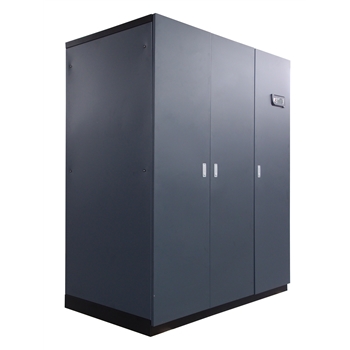

w-NEXT S
Ductable close control air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifier and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. Units fitted withEC INVERTER fans, upflow or downflow. These units are provided with 2 way modulating valve and servomotor.Unit has to be connected with an external chiller.
Versions
- UNDER - Downflow air supply
- OVER - Upflow air supply
Features
- Unit for installing inside or outside the room to be air-conditioned.
- Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
- The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
- NEW EC INVERTER fans with electronic commutation in order to maximize the energy saving and reducing the noise emissions. The fan section is contained within the machine and includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external rotor EC electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
- tandard COARSE 60% (ISO EN 16890) filtering section, Optional ePM10 50% (ISO EN 16890) - ePM1 85% (ISO EN 16890) , to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
- Switchboard to IEC 204-1/EN60204-1
- Capillary Pre and After sales service.
Accessories
- Remote user terminal
- Electric heating coil
- Humidifier
- Vibration isolation frame with rubber mountings
- Sound absorber plenum
- Air distribution plenum
- Interface electronic board
